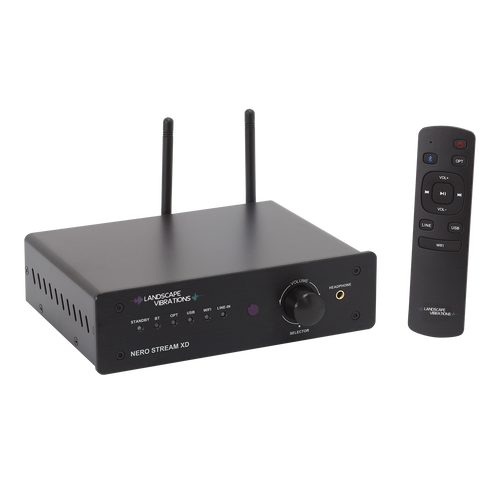

200W HIFI DAC CLASS D STEREO POWER AMPLIFIER, BLUETOOTH® WIRELESS, WI-FI OPTICAL, RCA, 3.5MM INPUTS, REMOTE CONTROL

Unleash the audiophile inside you with SPJ Lighting LV-SA45, a unique integrated amplifier with digital wired and wireless options that bridge the gap between high fidelity sound and wireless streaming in a compact, stand-alone and easy to use network. With a built-in 16 to 24 bit digital-to-analog converter (DAC) and inputs to cover all entertainment sources, LV-SA45 gives you unlimited access to all your digital audio sources, such as Spotify, iHeartRadio, TuneIn with smart speakers, and jump drives, and allows you to play those sources through new or existing audio components and speakers.

A stand-alone integrated amplifier, LV-SA45 includes line-level inputs (2 RCA) that connect to old-school audio sources but also includes Wi-Fi and Bluetooth to stream audio through your phone or tablet. Our LV-SA45 even has an upgraded version of Bluetooth (APXT) that plays at a higher bit rate than similar devices, so you’ll hear tones, drum beats, and musical nuances you never heard before on other wireless streaming devices. Our LV-SA45 also includes both a digital USB connection and a digital fiber-optic interface for devices like Chromecast audio and here’s the kicker. The internal DAC of the Chromecast sends its native digital signal to be processed by the much higher quality DAC on the LV-SA45. The result is true high-fidelity sound in a wireless world.

Model: LV-SA45
Desc.:
4 Pair Selector Switch Box
Size:
3-1/4"H x 17"W x 6-1/4"D
Specifications
  • Amplifier Type: Stereo
  • Design Type: Digital Class D
  • Channels: 2
  • Peak Power Output: 200W
  • 8 Ohm Rating (Watts): 30W Per Channel
  • 4 Ohm Rating (Watts): 60W Per Channel
  • Frequency Response: 20Hz-20kHz
  • Sensitivity: Digital, 0db input; Analog, 0.6Vrms
  • Impedance: 8 Ohm to 4 Ohm Stable
  • Signal to Noise Ratio: >95dB A-weighted
  • Sources/ Inputs: Bluetooth®/ Optical/ RCA Aux/ 3.5mm/ Wi-Fi/ USB
  • Output: Dedicated Subwoofer, Mono/RCA
  • Maximum Sample Rate: 44.1kHz, 48kHz, 96kHz, 192kHz
  • Bit Resolution: 16-24 bits
  • Gain: Analog, 30dB
  • DAC is by Cirrus Logic CS8416, Supports 24Bit/192kHz
  • Bluetooth® Range: 33'
  • Wall Mountable? Yes
  • Remote Control? Yes


200W HIFI DAC CLASS D STEREO POWER AMPLIFIER, BLUETOOTH® WIRELESS, WI-FI OPTICAL, RCA, 3.5MM INPUTS, REMOTE CONTROL

Multi Zone A B Speaker Distribution

Controller Box w/ Independent Audio Source Volume Control, Supports Home Theater Stereo Receiver System

This speaker selector box allows you to play audio to up to six different stereo speaker sets. It easily handles up to 100 watts per channel with speaker systems that have a minimum impedance of 8 ohms. Each input has anon/off switch. Protection circuitry keeps it running smoothly and prevents speaker burn-out. Accepts speaker wires up to 14 gauge.


Resources:
Manual (download)

Download CAD (click on logo):
